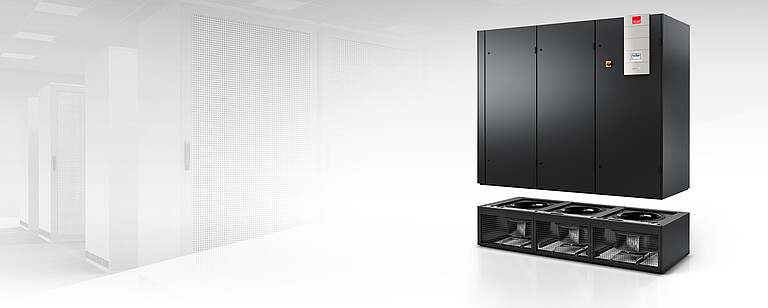

CyberAir 3PRO CW
The benchmark of flexibility and energy efficiency
The CyberAir 3PRO CW controls the conditions in the data center with the utmost precision, reliability and energy efficiency. Because STULZ technology leads the field, it can exploit potential savings to the full while still ensuring maximum reliability. No matter how different data centers may be, the CyberAir 3PRO CW is a chilled water air conditioner both flexible and made to measure: it is available in 11 sizes with various air conduction methods.
Product Overview
Need more information?
Download our brochure!
All details about CyberAir 3PRO CW
Energy efficiency & reliability - CyberAir 3PRO CW

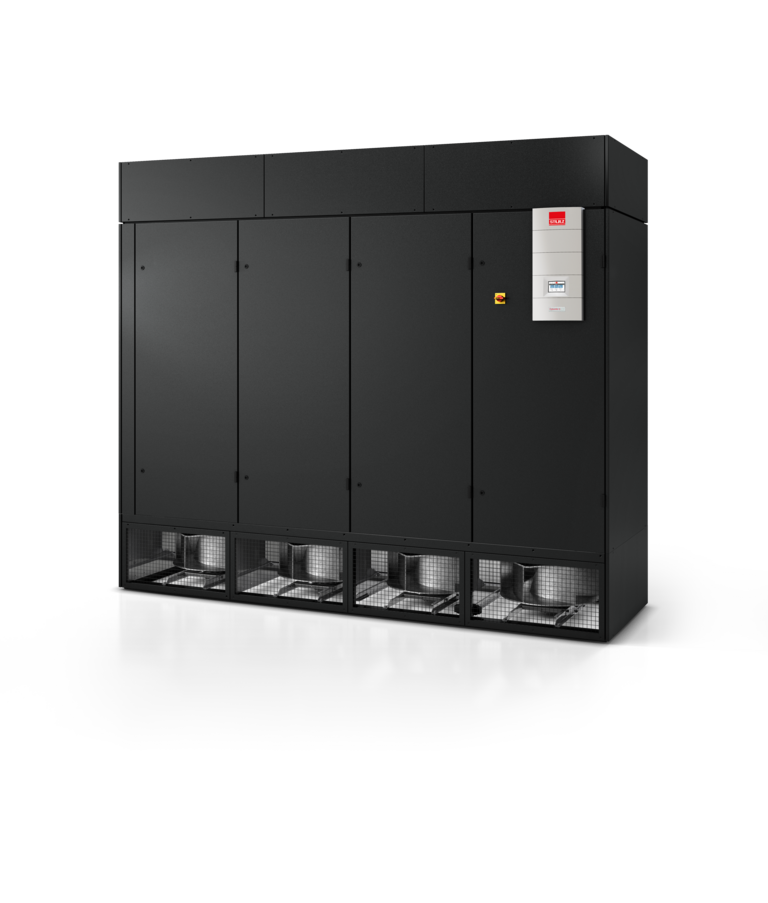

New size specifically for large and hyperscale data centers
ABR range
This size for chilled water air conditioners was developed to meet the requirements of large data centers while keeping an eye on efficiency and reliability. By maximizing unit dimensions, this new size delivers more cooling capacity per footprint and increases efficiency in large and hyperscale data centers.
-
ABR range
This size for chilled water air conditioners was developed to meet the requirements of large data centers while keeping an eye on efficiency and reliability. By maximizing unit dimensions, this new size delivers more cooling capacity per footprint and increases efficiency in large and hyperscale data centers.
Free Cooling
Two different Free Cooling methods are used, depending on how the outside air is used. If the outside air is conveyed directly inside the building, this is Direct Free Cooling. If the outside air does not penetrate the sensitive interior of the building, this is Indirect Free Cooling. Both methods offer advantages but entail certain challenges. We individually check which version best matches your needs, requirements, and intended use - and which solution provides you with the best value over the life of the system.
Direct Free Cooling
The CyberAir 3PRO CW precision air conditioning system with Direct Free Cooling air conditions Data Centers up to 90 % more economically than conventional compressor cooling systems. Direct Free Cooling exploits the potential of outside temperatures to air condition the data center using the cool outside air. Via the CyberAir 3PRO CW, the outside air, which has been treated by filter systems, gets directly into the server room.
CyberAir 3PRO CW units with downflow air conduction can be equipped with the FreeCool Plenum Free Cooling box. The FCP design with the dampers on top is a flexible construction that takes up no extra space for the chilled water air conditioner. With this option, Free Cooling is automatically combined with the chiller system's compressor cooling in three variable stages, to suit the outside temperature and cooling needs, ensuring that maximum savings are always exploited to the full.
Learn more about Direct Free Cooling
Indirect Dynamic Free Cooling

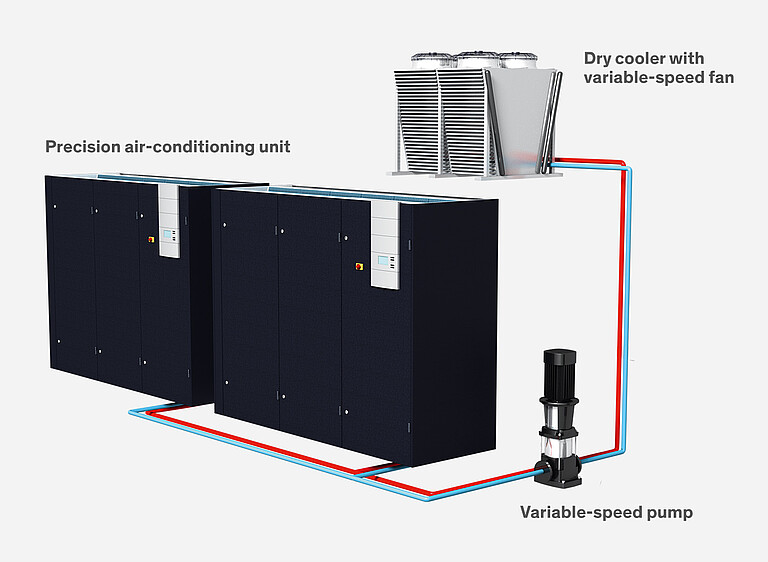

Indirect Dynamic Free Cooling from STULZ is the only system worldwide with automatic efficiency optimization. The dynamic switching operation and control reduces the compressor running time to a minimum and reduces the total energy consumption by up to 60%, taking into account all active components.
The system cools precisely and dynamically according to the current heat load. This means that only the required cooling capacity is ever generated by the chilled water air conditioner and there is no energy-intensive oversupply. Taking into consideration outside temperature and current heat load, the dynamic switching operation and control selects the optimum operating mode without a fixed Free Cooling start value.
Project: Free Cooling for Paragon CC printing business
At Paragon Customer Communications STULZ keep the printing environment in optimum condition whilst ensuring high quality productivity for 500 personnel working within a critical printing workspace.
Indirect Dynamic Free Cooling from STULZ is the only system worldwide with automatic efficiency optimization. The dynamic switching operation and control reduces the compressor running time to a minimum and reduces the total energy consumption by up to 60%, taking into account all active components.
The system cools precisely and dynamically according to the current heat load. This means that only the required cooling capacity is ever generated by the chilled water air conditioner and there is no energy-intensive oversupply. Taking into consideration outside temperature and current heat load, the dynamic switching operation and control selects the optimum operating mode without a fixed Free Cooling start value.
Project: Free Cooling for Paragon CC printing business
At Paragon Customer Communications STULZ keep the printing environment in optimum condition whilst ensuring high quality productivity for 500 personnel working within a critical printing workspace.
Indirect Dynamic Free Cooling from STULZ is the only system worldwide with automatic efficiency optimization. The dynamic switching operation and control reduces the compressor running time to a minimum and reduces the total energy consumption by up to 60%, taking into account all active components.
The system cools precisely and dynamically according to the current heat load. This means that only the required cooling capacity is ever generated by the chilled water air conditioner and there is no energy-intensive oversupply. Taking into consideration outside temperature and current heat load, the dynamic switching operation and control selects the optimum operating mode without a fixed Free Cooling start value.
Project: Free Cooling for Paragon CC printing business
At Paragon Customer Communications STULZ keep the printing environment in optimum condition whilst ensuring high quality productivity for 500 personnel working within a critical printing workspace.
Fans in the raised floor
Optimized unit design for maximum potential savings
The design of our units means that STULZ precision air conditioning units boast maximum EER values and the lowest AER (Airflow Efficiency Ratio) values, and therefore achieve air conduction with maximum efficiency. The AER describes the ratio of the fan power consumption to the airflow. ASR air conduction (fans integrated in the raised floor), in particular, hugely reduces fan power consumption by ensuring minimal turbulence and changes in airflow direction, for energy savings that you will notice straight away.
CFD simulation
Comprehensive control over all relevant factors is vital to achieve optimal performance and efficiency in a data center. STULZ contributes to this goal by providing the CFD (Computational Fluid Dynamics) service for data centers, using its unique fluid dynamics expertise at the product level to make the CFD simulation more accurate at the application level.
Precise temperature regulation
Delta T
The air-side difference in temperature between the air inlet and outlet of server cabinets and air conditioning systems is known as ΔT. To ensure optimum operation and the greatest possible savings on running costs, it is vital that the ΔT of the air conditioning units is adapted precisely and efficiently to the ΔT of your server cabinets.
Our dynamic control enables ΔT to be adapted to changing IT requirements, ensuring maximum energy efficiency during operation.
Learn more in our blog-article "Delta T – The air-side temperature difference"
Temperature profile
Optimum supply air conditions for reliability and maximum efficiency

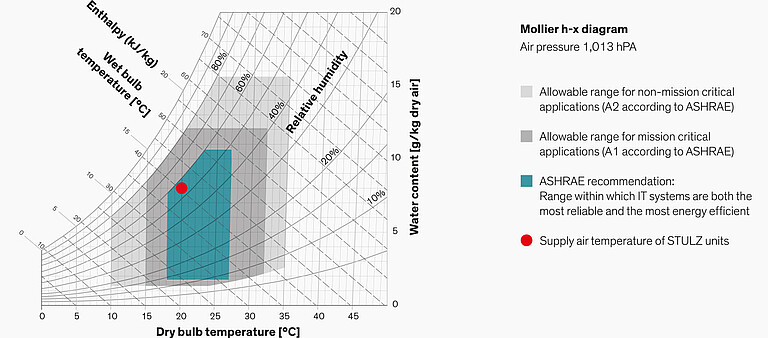

To cool your data center as efficiently as possible without compromising on reliability, ASHRAE has published a recommendation for the air temperature at the server inlet. We have been developing chilled water air conditioning units for mission-critical applications - where even tiny malfunctions can have serious consequences - for decades now. Not only that, we have always focused on energy efficiency, and because of this, the supply air temperatures of our units lie within ASHRAE's recommended range.
EC fans

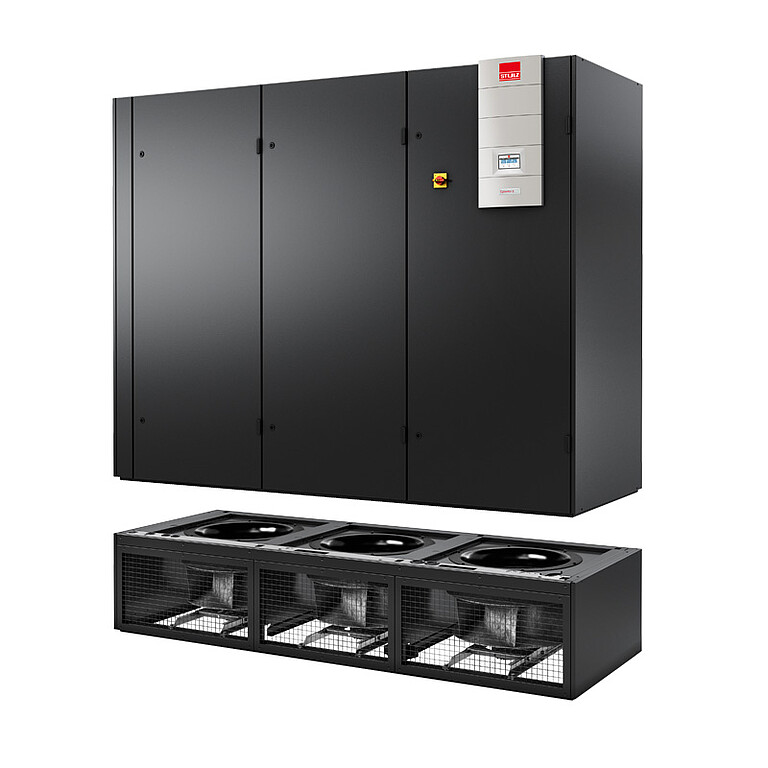

RadiCal EC fans of the latest generation
- GreenTech EC technology
- Significantly higher air output
- Over 10% lower power consumption
- Reduced noise
- Optimized airflow
- Improves the AER of CyberAir 3PRO CW units
- Latest motor generation
- Impellers made of high-tech composite material for increased fan power density
- Long lifetime
Pressure independent control valve
Related Blogposts
More information on this topic is available in the following blog article:
Chilled water air conditioner with pressure independent 2-way control ball valve

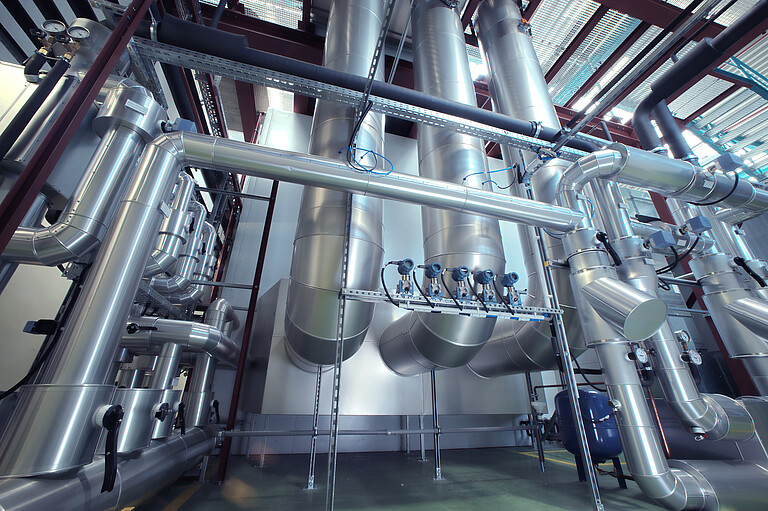

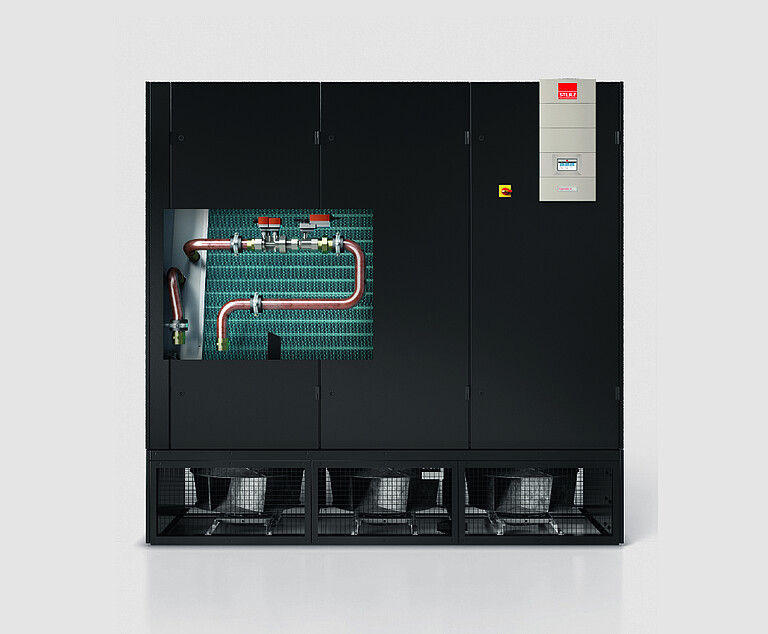

CyberAir 3PRO CW can be equipped with a pressure independent control valve. Here always the full-load water flowrate is set as a setpoint. The valve regulates the required water volume depending on the load.
"Pressure independent" means that the consumer always receives the correct water flowrate and that the control accuracy does not depend on the position of the valve as well as the pressure conditions in the hydraulic system.
Related Blogposts
More information on this topic is available in the following blog article:
Chilled water air conditioner with pressure independent 2-way control ball valve
CyberAir 3PRO CW can be equipped with a pressure independent control valve. Here always the full-load water flowrate is set as a setpoint. The valve regulates the required water volume depending on the load.
"Pressure independent" means that the consumer always receives the correct water flowrate and that the control accuracy does not depend on the position of the valve as well as the pressure conditions in the hydraulic system.
Standby management
We create redundancy in our air conditioning units, to provide you with the most reliable air conditioning possible. To do this, we install more units than are actually needed for air conditioning.

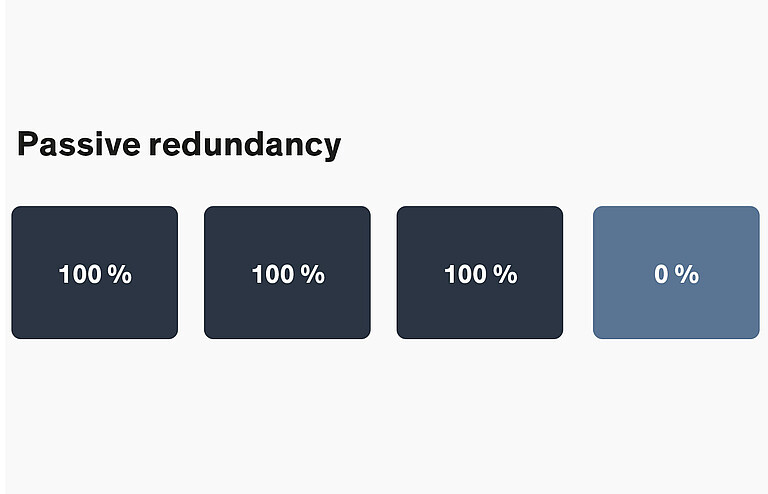

With the usual, passive form of redundancy, these units are only started up (automatically) if a unit that is running switches off due to a fault. With STULZ standby management, on the other hand, active redundancy exploits the potential of the EC fans. While the total airflow remains the same, the use of standby units per unit is reduced. The reduced airflow cuts fan power consumption and associated operating costs even further. In all, this measure not only lowers operating costs but also reduces overall noise. If a unit fails, the speed of all the fans of the other units increases.
Related Blogposts
More information on this topic is available in the following blog article:
With passive redundancy, the active air conditioning units continuously run at full load. The standby unit remains unused.

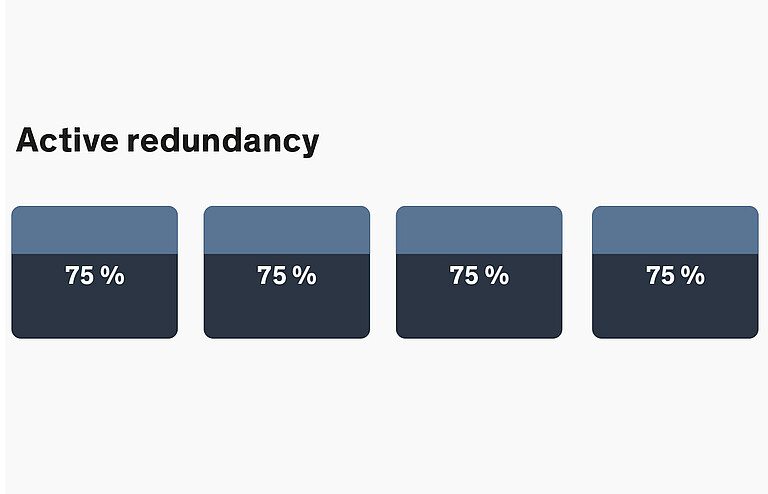

STULZ standby management uses active redundancy to distribute reserve capacity evenly between all air conditioning units in partial load mode. If individual units fail or require maintenance, the remaining units automatically switch to controlled full load operation.
We create redundancy in our air conditioning units, to provide you with the most reliable air conditioning possible. To do this, we install more units than are actually needed for air conditioning.
With the usual, passive form of redundancy, these units are only started up (automatically) if a unit that is running switches off due to a fault. With STULZ standby management, on the other hand, active redundancy exploits the potential of the EC fans. While the total airflow remains the same, the use of standby units per unit is reduced. The reduced airflow cuts fan power consumption and associated operating costs even further. In all, this measure not only lowers operating costs but also reduces overall noise. If a unit fails, the speed of all the fans of the other units increases.
Related Blogposts
More information on this topic is available in the following blog article:
-
With passive redundancy, the active air conditioning units continuously run at full load. The standby unit remains unused.
STULZ standby management uses active redundancy to distribute reserve capacity evenly between all air conditioning units in partial load mode. If individual units fail or require maintenance, the remaining units automatically switch to controlled full load operation.
We create redundancy in our air conditioning units, to provide you with the most reliable air conditioning possible. To do this, we install more units than are actually needed for air conditioning.
With the usual, passive form of redundancy, these units are only started up (automatically) if a unit that is running switches off due to a fault. With STULZ standby management, on the other hand, active redundancy exploits the potential of the EC fans. While the total airflow remains the same, the use of standby units per unit is reduced. The reduced airflow cuts fan power consumption and associated operating costs even further. In all, this measure not only lowers operating costs but also reduces overall noise. If a unit fails, the speed of all the fans of the other units increases.
Related Blogposts
More information on this topic is available in the following blog article:
-
With passive redundancy, the active air conditioning units continuously run at full load. The standby unit remains unused.
STULZ standby management uses active redundancy to distribute reserve capacity evenly between all air conditioning units in partial load mode. If individual units fail or require maintenance, the remaining units automatically switch to controlled full load operation.
Control and monitoring
In order to meet the highest standards of reliability and usability, STULZ develops the control system in-house, ensuring that software, hardware and air conditioning units are perfectly harmonized.
- High flexibility: Project-specific software development and optimization
- Optimized usability: Touch display offers clear menu navigation and intuitive handling of the controller.
- Maintenance-friendly: Plug-and-play installation and optimized control parameters simplify maintenance tasks
- Maximum reliability: Redundancy management, integrated standby management with backup operation, differentiated warning and alarm system
- Energy management: Supports energy demand optimization for interconnected systems, operation of several air conditioning units in parallel
- Monitoring: Direct BMS interfaces on the controller, support for all relevant BMS protocols and a compact data point list simplify commissioning.
Service and maintenance
As a company with locations across the globe, we offer everything you need in the extremely dynamic world of information technology – plus professional advice in the right place at the right time.
Our trained and experienced sales and service partners are located in over 140 countries. The resulting proximity to our customers allows fast response times. In addition, regular training courses and an active exchange of information ensure high quality and an extensive knowledge of all our products. This way, you can be sure your products are in the best hands and get the right maintenance – all over the world.
Test Center

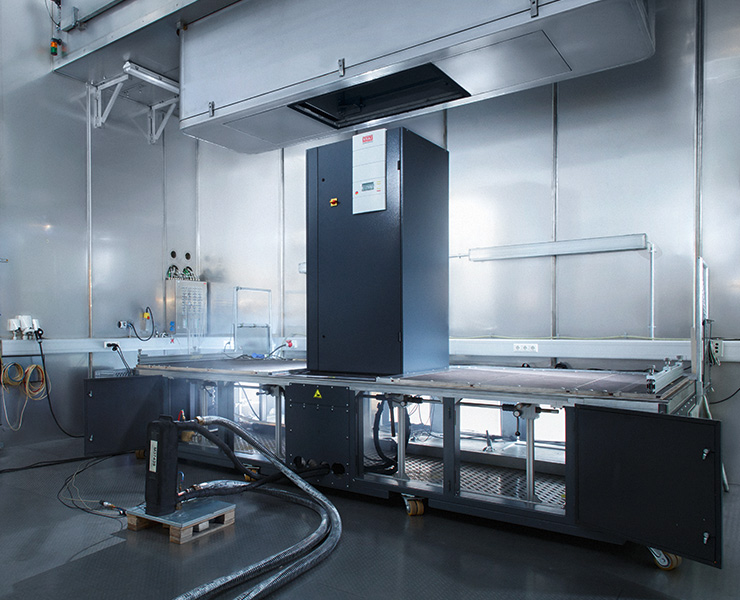

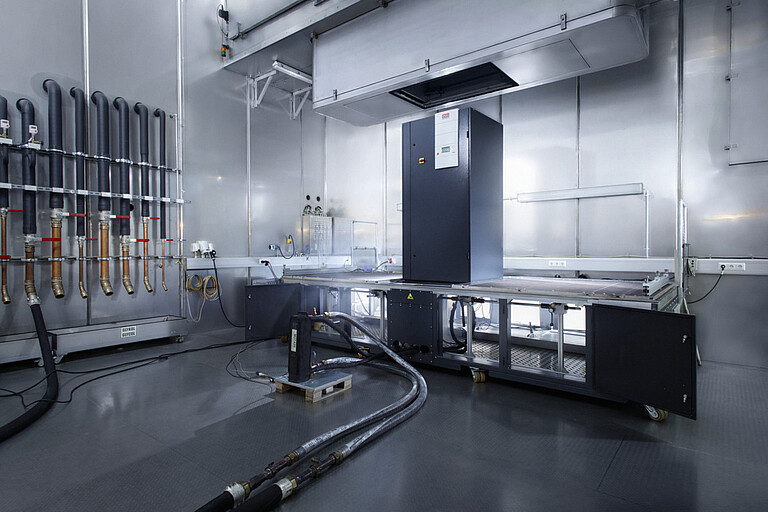

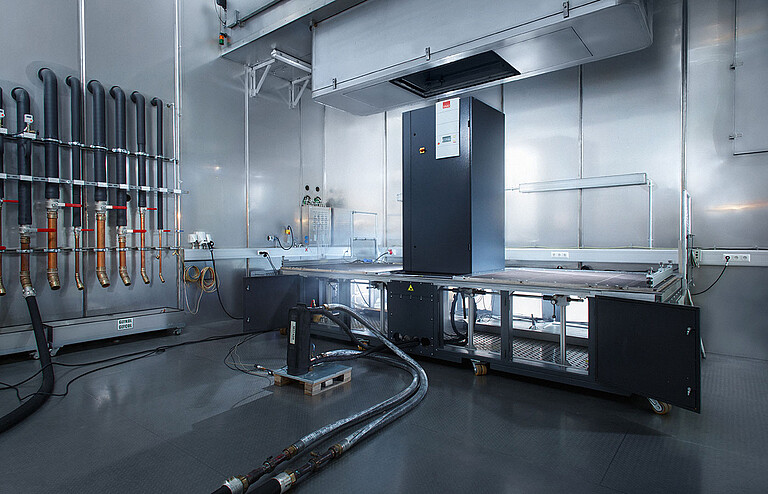

In our state-of-the-art, 700-square-meter Test Center with its various climate chambers, we can perform a variety of tests on precision air conditioning units and chillers. During the development of the CyberAir 3PRO CW, we were able to test and optimize it under all climatic conditions encountered around the world.
In addition, we offer you the opportunity to book a witness test in our Test Center. This allows you to have the desired air conditioning system tested according to your exact specifications, creating transparency and providing you with information about your system’s performance and energy consumption.
Read more about our Test Centers
Flexibility
Climate. Customized.
From standard units to fully customized solutions
The ability to offer such a wide range to customers is the embodiment of our philosophy, "Climate. Customized.". Size, design, air conduction, system or control: CyberAir 3PRO CW is a model of adaptability and the room air conditioners can be precisely adapted to your individual requirements. In addition, a variety of options and equipment versions are available to achieve the optimum result.
Learn more about Climate. Customized.
Upflow, Downflow and Raised Floor

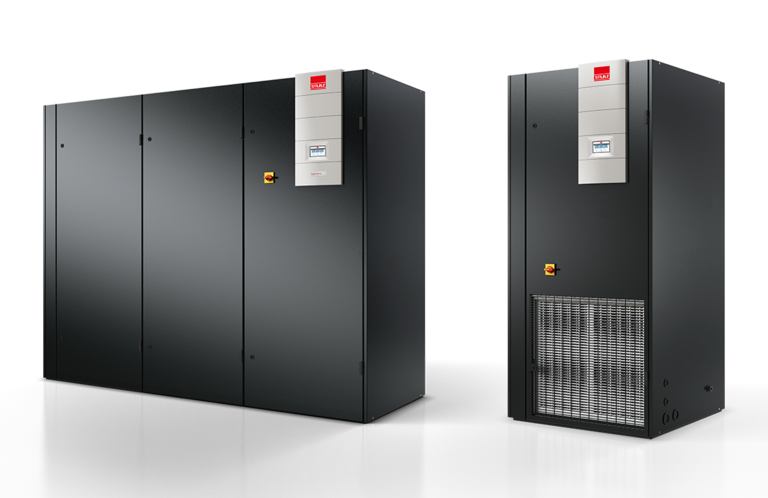

Downflow and Upflow versions

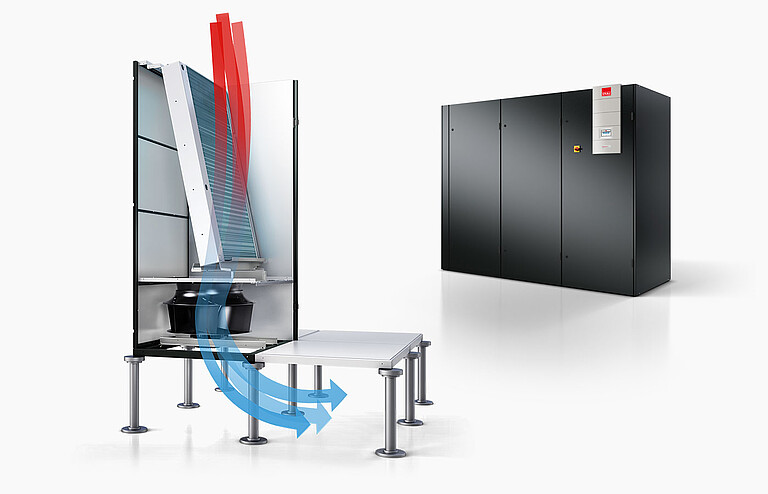

The design with integrated fans is available with standard Downflow (ASD) and Upflow (ASU) air conduction. Through further development and by optimizing the design, the chilled water air conditioners are now considerably more efficient than the previous version.

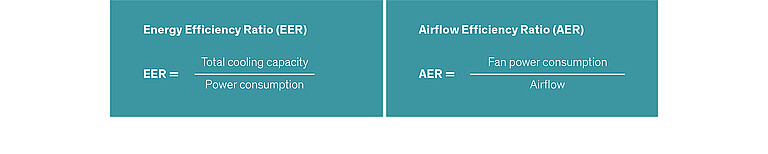

This can be witnessed in the noticeably higher Energy Efficiency Ratio (EER) and lower Airflow Efficiency Ratio (AER).
Raised Floor version

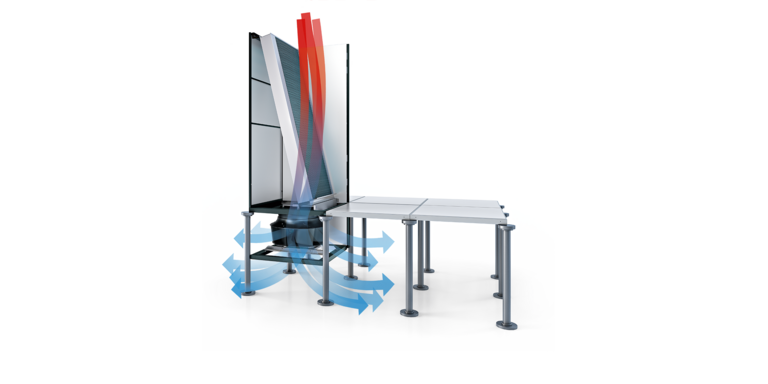

The Raised Floor (ASR) series promises even higher energy savings than units with fans on the raised floor. This model is equipped with an external fan box, and air conduction is specific to the unit. The fan box is installed under the unit, in the raised floor.
The resulting additional space in the air conditioning unit can be used for larger heat exchangers, resulting in a noticeably higher cooling capacity for the footprint. What’s more, positioning the fans in the raised floor means less turbulence and fewer changes in airflow direction. The result is ideal air conduction and therefore massively reduced fan power consumption (AER).
Downflow and Upflow versions
The design with integrated fans is available with standard Downflow (ASD) and Upflow (ASU) air conduction. Through further development and by optimizing the design, the chilled water air conditioners are now considerably more efficient than the previous version.
This can be witnessed in the noticeably higher Energy Efficiency Ratio (EER) and lower Airflow Efficiency Ratio (AER).
Raised Floor version
The Raised Floor (ASR) series promises even higher energy savings than units with fans on the raised floor. This model is equipped with an external fan box, and air conduction is specific to the unit. The fan box is installed under the unit, in the raised floor.
The resulting additional space in the air conditioning unit can be used for larger heat exchangers, resulting in a noticeably higher cooling capacity for the footprint. What’s more, positioning the fans in the raised floor means less turbulence and fewer changes in airflow direction. The result is ideal air conduction and therefore massively reduced fan power consumption (AER).
Downflow and Upflow versions
The design with integrated fans is available with standard Downflow (ASD) and Upflow (ASU) air conduction. Through further development and by optimizing the design, the chilled water air conditioners are now considerably more efficient than the previous version.
This can be witnessed in the noticeably higher Energy Efficiency Ratio (EER) and lower Airflow Efficiency Ratio (AER).
Raised Floor version
The Raised Floor (ASR) series promises even higher energy savings than units with fans on the raised floor. This model is equipped with an external fan box, and air conduction is specific to the unit. The fan box is installed under the unit, in the raised floor.
The resulting additional space in the air conditioning unit can be used for larger heat exchangers, resulting in a noticeably higher cooling capacity for the footprint. What’s more, positioning the fans in the raised floor means less turbulence and fewer changes in airflow direction. The result is ideal air conduction and therefore massively reduced fan power consumption (AER).
Various air conduction systems

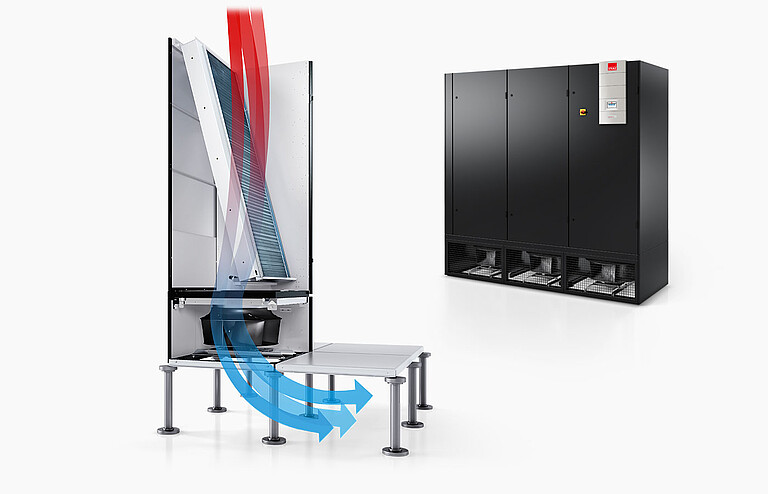

Downflow
Upflow

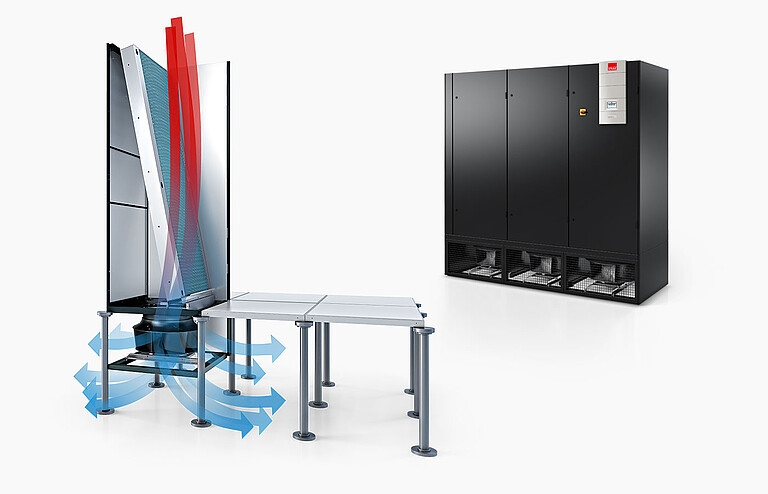

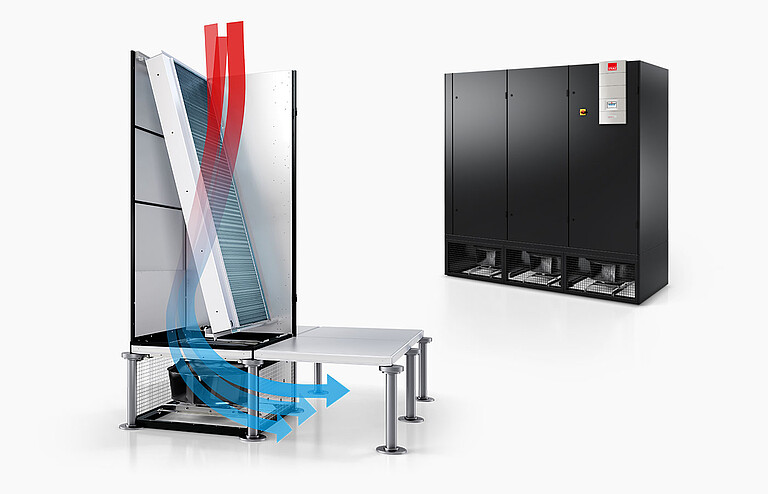

Raised floor, air conduction: Front
Raised floor, air conduction: Front/Back/Down
High version, air conduction: Down

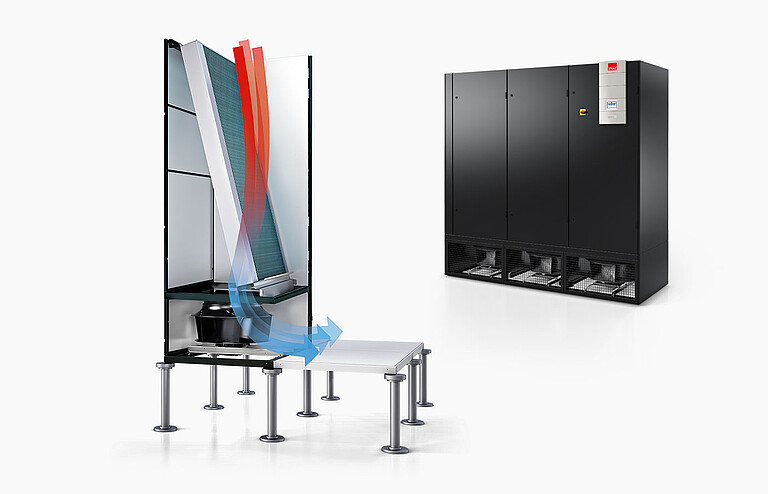

High version, air conduction: Displacement
Downflow
Upflow
Raised floor, air conduction: Front
Raised floor, air conduction: Front/Back/Down
Heat exchangers

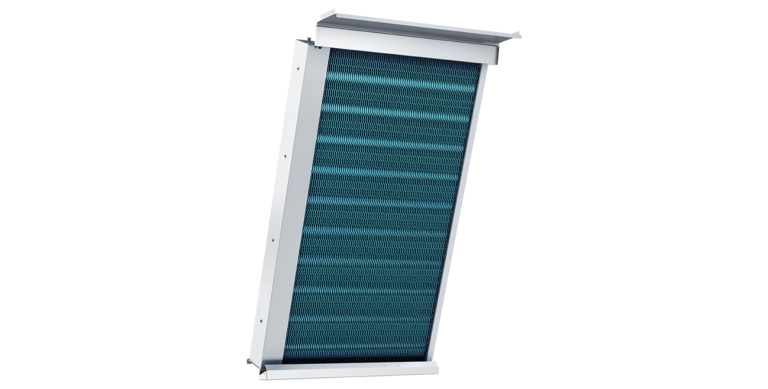

Optimized heat transfer via high-quality chilled water air conditioners
In chilled water systems, the heat exchangers are the most important component and a guarantee of the best possible heat transfer. The heat exchanger system of the CyberAir 3PRO CW is continually being further developed and optimized for the latest data center applications. Different versions of heat exchangers are available, ensuring the precision air conditioning’s flexibility to satisfy every customer's specific requirements.
Benefits of the optimized heat transfer
- Optimized cooling unit geometry
- Reduced water and air-side pressure drops
- Several versions for maximum flexibility
Special solution for modernized data centers
A special heat exchanger is suitable for operation at high air-side and low water-side temperatures - and therefore for data center modernization projects where old chillers will continue to be used for the air condition. This configuration enables supply air conditions in accordance with the ASHRAE recommendation.
Optimized heat transfer via high-quality chilled water air conditioners
In chilled water systems, the heat exchangers are the most important component and a guarantee of the best possible heat transfer. The heat exchanger system of the CyberAir 3PRO CW is continually being further developed and optimized for the latest data center applications. Different versions of heat exchangers are available, ensuring the precision air conditioning’s flexibility to satisfy every customer's specific requirements.
Benefits of the optimized heat transfer
- Optimized cooling unit geometry
- Reduced water and air-side pressure drops
- Several versions for maximum flexibility
Special solution for modernized data centers
A special heat exchanger is suitable for operation at high air-side and low water-side temperatures - and therefore for data center modernization projects where old chillers will continue to be used for the air condition. This configuration enables supply air conditions in accordance with the ASHRAE recommendation.
Optimized heat transfer via high-quality chilled water air conditioners
In chilled water systems, the heat exchangers are the most important component and a guarantee of the best possible heat transfer. The heat exchanger system of the CyberAir 3PRO CW is continually being further developed and optimized for the latest data center applications. Different versions of heat exchangers are available, ensuring the precision air conditioning’s flexibility to satisfy every customer's specific requirements.
Benefits of the optimized heat transfer
- Optimized cooling unit geometry
- Reduced water and air-side pressure drops
- Several versions for maximum flexibility
Special solution for modernized data centers
A special heat exchanger is suitable for operation at high air-side and low water-side temperatures - and therefore for data center modernization projects where old chillers will continue to be used for the air condition. This configuration enables supply air conditions in accordance with the ASHRAE recommendation.
Options for data center cooling
The numerous different options and possible equipment enable you to perfectly adapt CyberAir 3PRO CW chilled water air cooler units to your requirements.
Cooling Systems
STULZ offers individual system solutions adapted precisely to your project requirements.
CW system
CW system: Liquid cooled system

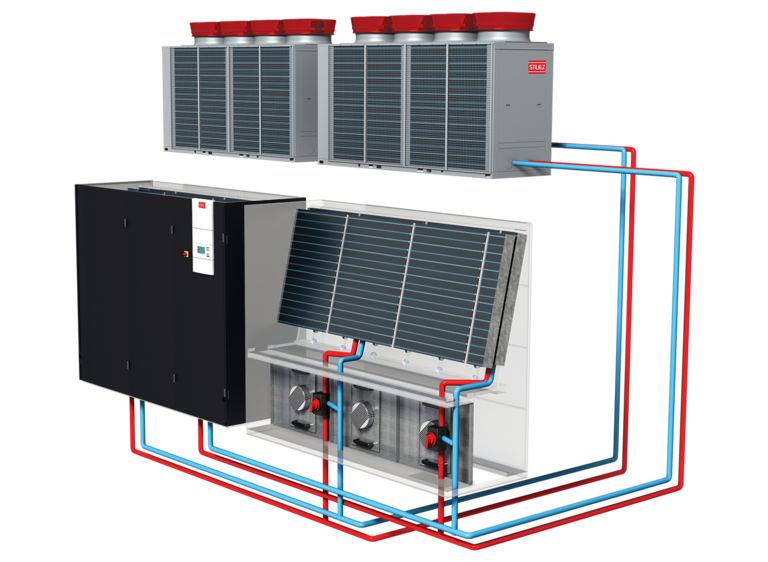

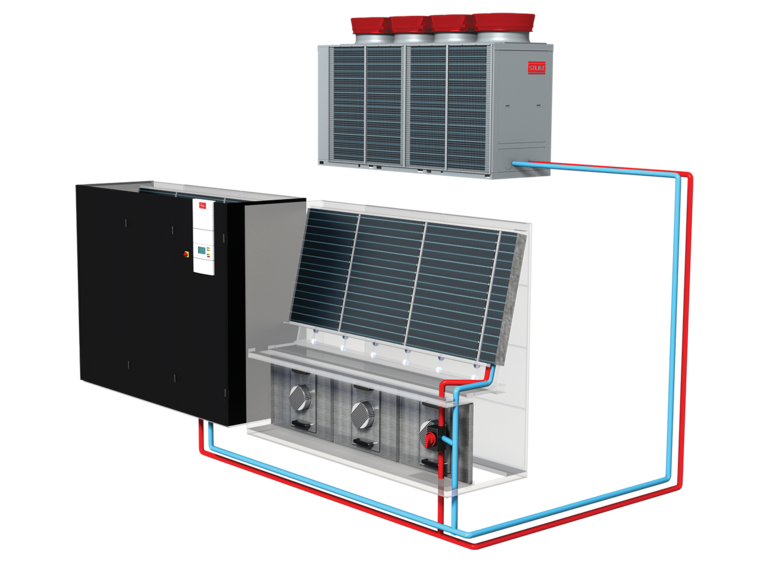

CW units manage without a refrigerant circuit of their own, but require separate chilled water generation. The room air conveyed by the fan flows through the direct cooling unit, which transfers heat to the water/glycol mixture. A chiller removes the heat from this water/glycol mixture. The air conditioning unit and the chiller are connected to one another by a closed water/glycol circuit.
CW2 system
CW2 system: Liquid cooled system with built-in redundancy
High-reliability systems frequently require a second, independent chilled water supply. Therefore, in the CW2 system two redundant CW systems are integrated in a single air conditioning unit, saving valuable space in the Data Center.
