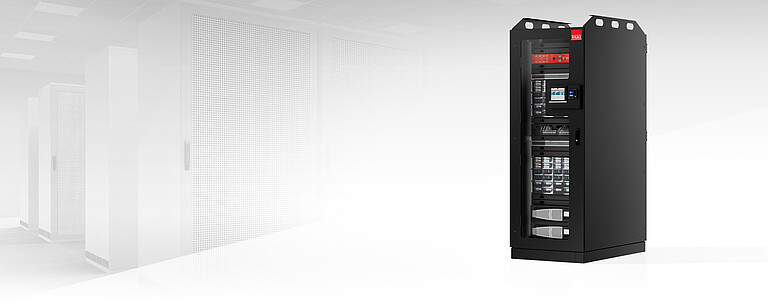

Micro DC I-Series
Micro DC I-Series – A redefined server room infrastructure
As businesses grow their IT footprint, the demand for servers quickly surpasses available capacity, leading to the need for extra racks and supporting infrastructure. With significant investments in hardware, it becomes critical to provide an environment that maximizes performance and extends equipment life.
For smaller server rooms—particularly those with fewer than 10 racks—the conventional approach of designing and constructing a full-scale data center can be both lengthy and expensive. Companies often spend on non-essential elements such as raised flooring or heavy room modifications. On the flip side, cost-cutting measures can compromise energy efficiency and reliability.
A Micro Data Center offers a compact, cost-effective, and energy-conscious alternative—delivering the right conditions for high-performance IT systems without the complexity of traditional builds.
Product Overview
Most important benefits
- Efficient, close-coupled cooling enables server hardware to perform at peak levels
- Proper power conditioning and backup for business continuity
Most important features
- More computing power on a smaller footprint: saves up to 50% space
- Complete data center infrastructure including power, cooling, UPS, batteries, fire & security systems, IT racks networking and remote monitoring
Most important technical data
- Cooling capacity In-rack: 3.5 – 7
- Cooling capacity Side-mounted: 7 – 40
- Efficient, close-coupled cooling enables server hardware to perform at peak levels
- Proper power conditioning and backup for business continuity
- Protection from dust, water & rodents (IP54 rack)
- Security from unauthorized access
- Compliance with fire and safety provisions
- Video surveillance
- Suitable for 24/7 operation with maximum uptime
- More computing power on a smaller footprint: saves up to 50% space
- Complete data center infrastructure including power, cooling, UPS, batteries, fire & security systems, IT racks networking and remote monitoring
- Deployment time is reduced by 75%
- Modular and flexible configuration of up to 8 racks
- Rack-optimized design reduces need for construction work and dependencies on building infrastructure; does not require an air-conditioned environment
- Close-coupled air conditioning approach helps reduce cooling area and hence power consumption
- No need for a raised floor; flexible placement within a building even in an open-plan office space (excluding basement and terrace)
- Hot aisle/cold aisle arrangement
- Easy to dismantle and relocate the entire facility to a new location
| Parameters | Specifications |
|---|---|
| In-rack cooling Zero U | |
| System capacity (kW) | 3.5 – 7 |
| Dimensions | Height (mm): 32U / 42U / 47U / 52U Width (mm): 800 Depth (mm): 1,200 |
|
| |
| In-rack cooling U-Mounted Type | |
| System capacity (kW) | 3.5 – 7 |
| Dimensions | Height (mm): 5U / 10U Width (mm): 800 Depth (mm): 1,200 |
|
| |
| Side-mounted cooling | |
| System capacity (kW) | 7 – 40 |
| Dimensions | Height (mm): 42U / 47U / 52U Width server rack (mm): 600 / 800 Depth (mm): 1,200 |
| Method of air contact | Direct Expansion (DX) Chilled Water (CW) |
Insights on the MDC I-Series from Product Manager Matthias Vogt
All details about Micro DC I-Series
Pre-Designed solution to save time and expenses
STULZ Micro DC I-Series offers a high-quality, pre-designed approach that uses 50% less floor space and can be deployed in just a quarter of the time compared to traditional server room designs. Specifically designed for hosting 1 to 8 IT racks, this efficient system reduces the risk associated with the extensive engineering required for custom installations, saving both time and money. This solution is pre-fabricated and ready to be shipped, assembled, and integrated at customer premises, providing a streamlined, cost-effective, and high-performance server room setup.
Server room in a rack
A pre-designed and pre-fabricated solution
STULZ helps you determine your server room requirements, works with you to configure the data center from the available micro data center designs, and provides complete installation and testing services. STULZ is the single point of contact and manages the project from start to finish, providing a robust “turnkey server room”. This helps customers focus on their core business and reduces the need to divert key personnel to a project they may have limited experience with.

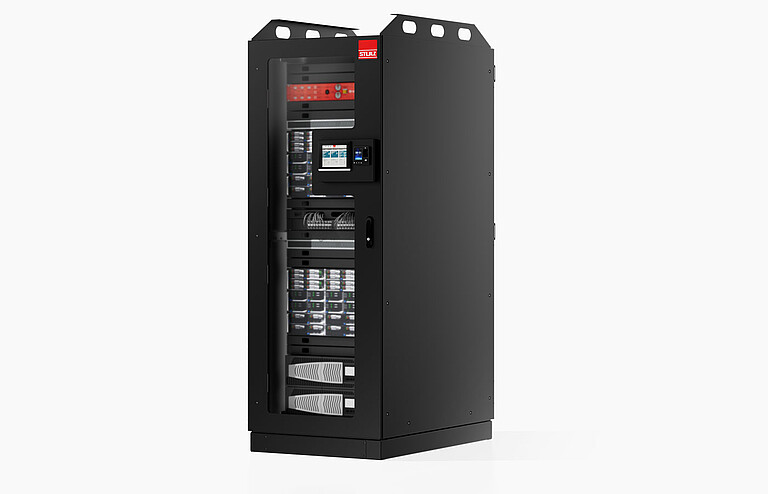

In-rack cooling

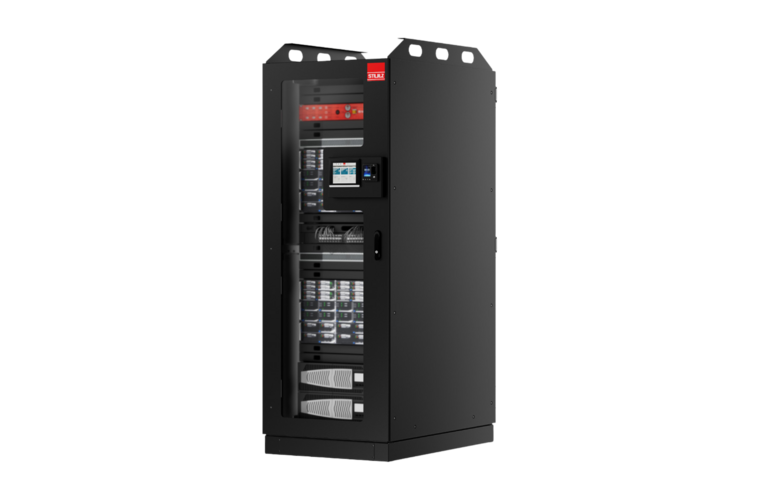

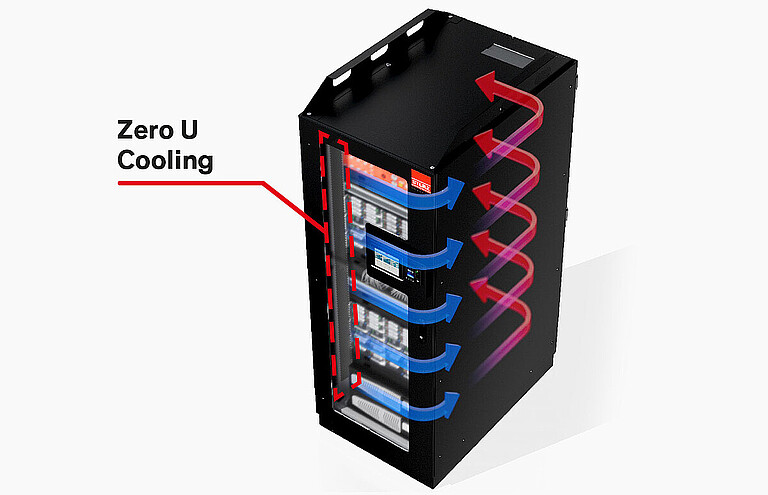

This stand-alone solution, with one or two racks as standard, contains all the important components of a data center in a purpose-built housing. Rack, cable management, UPS, power supply, cooling, monitoring and fire protection can be integrated as standard. The cooling components are integrated in the rack as a U-mounted type at the bottom of the rack or in the side of the rack as a Zero U type, without the need for U-space.
Zero U allows more space to be allocated to servers as it does not require any U-space.

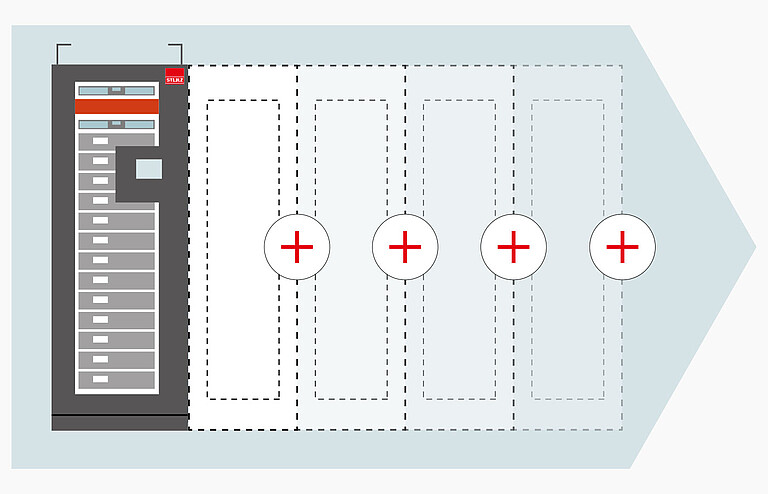

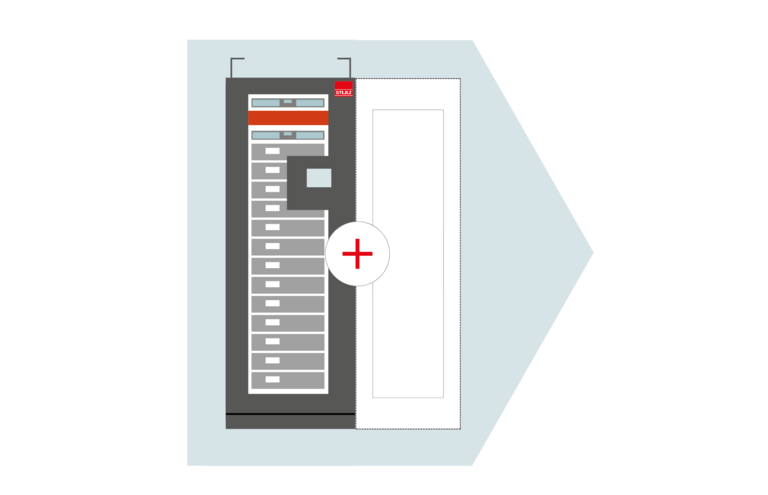

Scalability: The STULZ Micro DC I-Series offers an incomparable level of scalability that makes it possible to grow with the requirements.
Solution
|
Medium of air contact
|
In-rack cooling: Zero “U” Type Cooling capacity options
|
In-rack cooling: U-Mounted Type Cooling capacity options
|

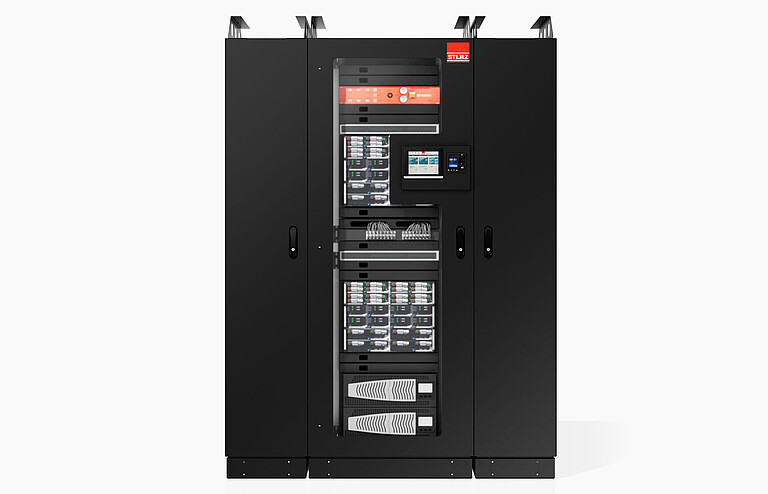

Side-mounted cooling

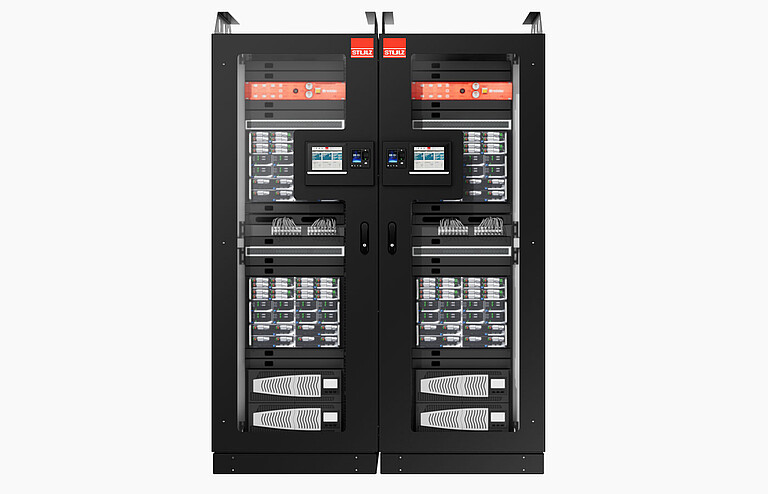

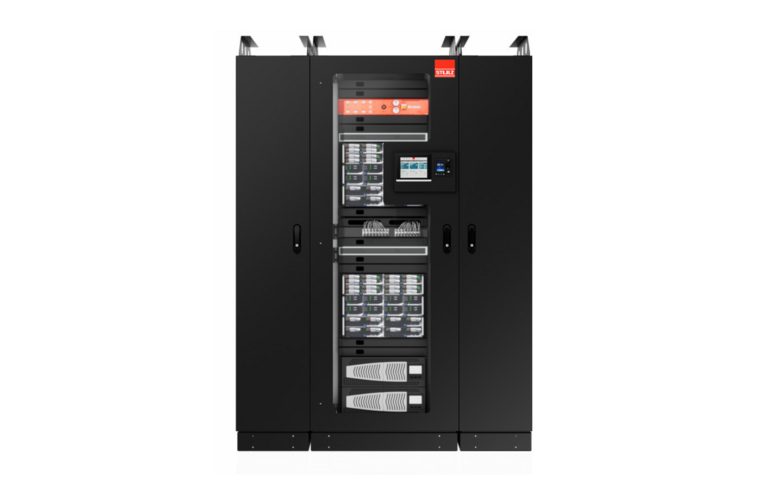

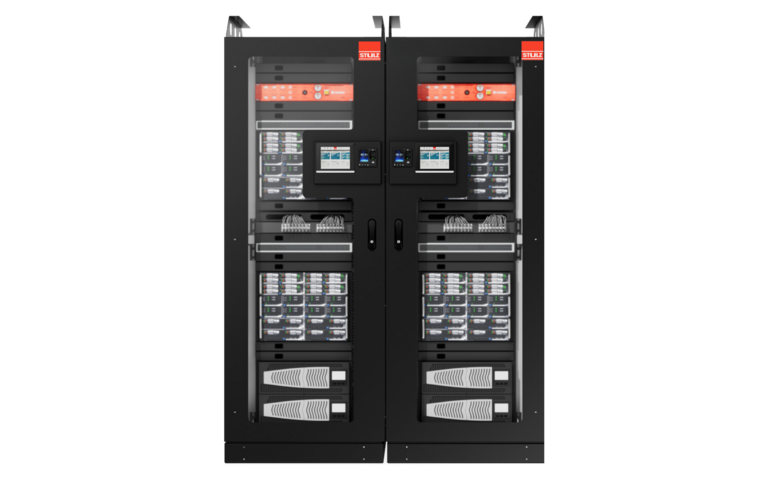

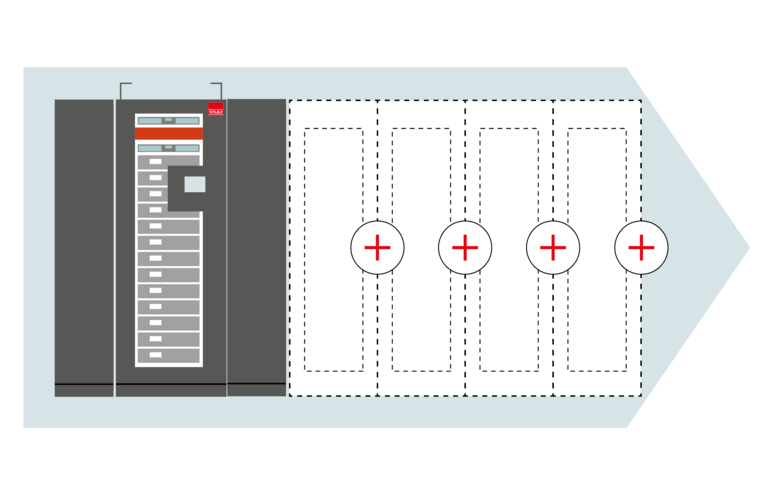

The Micro DC I-Series is an all-in-one modular scalable solution from single rack solution going up to eight rack solution bayed together to form a single row of racks with integrated cooling system incorporating all the key infrastructure components of a data center.
Scalability: The STULZ Micro DC I-Series offers an incomparable level of scalability that makes it possible to grow with the requirements.
Solution
| |
Medium of air contact
|
Side-mounted cooling – DX: (400 mm wide cabinet)
|
Side-mounted cooling – DX : (600 mm wide cabinet)
|
Side-mounted cooling – CW : (400 mm wide cabinet)
|

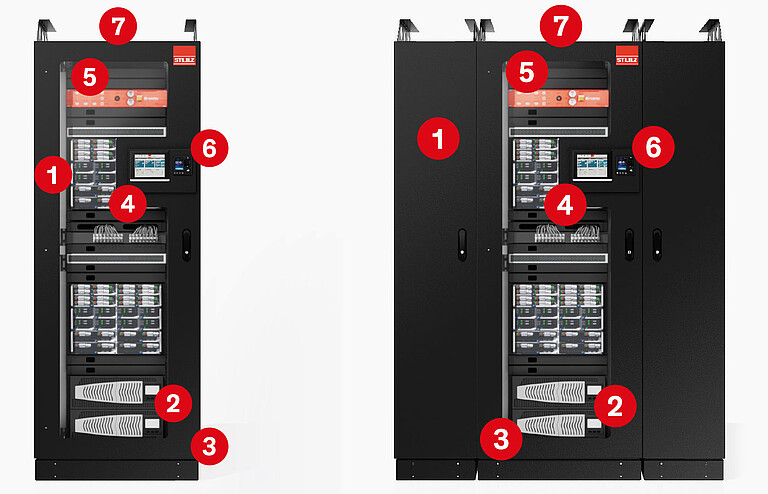

Data center in a rack
The unit is an all-in-one innovative, intelligent, compact server room infrastructure solution from a single OEM. It includes racks, power, cooling, UPS, fire detection and suppression, remote real-time monitoring, rodent repellent, video surveillance, and more. Precisely designed for mission-critical server room applications, it uses high quality products to deliver a flexible, efficient, scalable, and intelligent server room infrastructure standardized for the growing industry.
A variety of options and equipment versions is available to achieve the optimum result.
- Cooling
Provides cooling directly to IT equipment while efficiently capturing its heat - UPS & batteries
Ensure clean power feed and continuity to critical IT infrastructure - Power distribution
Smart PDUs with environmental probe & temperature humidity sensor - Monitoring and security
7” touchscreen display that provides easy access to information for power, thermal management, and security. Remote monitoring. - Fire detection and suppression system
Fire monitoring and suppression - Access control and security
Access to the racks is protected by biometric access control - Automated emergency fans
Door opening feature in the event of overheating.
Highlights
- Deployment time is reduced by 75%
- Modular and flexible configuration of up to 8 racks
- More computing power in less footprint: saves up to 50% space
- Low Total Cost of Ownership
- Complete data center infrastructure including power, cooling, UPS, batteries, fire & security systems, IT racks networking and remote monitoring
- The solution is sealed inside IT racks, insulating the space from environmental changes in the surroundings
- Rack-optimized design reduces need for construction work and dependencies on building infrastructure; does not require an air-conditioned environment
- Close-coupled air- conditioning approach helps reduce cooling area and hence power consumption
- No need for a raised floor; flexible placement within a building even in an open- plan office space (excluding basement and terrace)
- Hot aisle/cold aisle arrangement
- Central monitoring system for complete solution, including video surveillance and component status, remote monitoring via LAN
- Complete suite of STULZ services for design, site preparation, installation, training and service
- Easy to dismantle and relocate the entire facility to a new location
The STULZ India Advantage

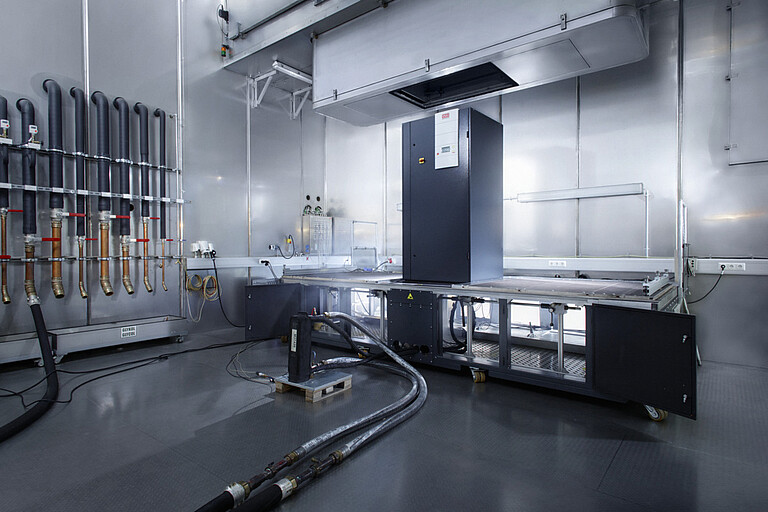

Witness Test Center
The STULZ state-of-the-art witness test center in India is located at its production facility in Navi Mumbai. The test center is equipped for a variety of tests on all equipment, on request. Tests are conducted to DIN standards to determine system performance and energy consumption under simulated design conditions.
State-of-the-Art Manufacturing
Products are shipped and installed from STULZ's state-of-the-art design and manufacturing facility at Navi Mumbai spread over 250,000 sq. ft. It houses the company's largest Engineering Excellence Center (EEC) outside of Germany.
Efficient Service Support
Our trained and experienced sales and service partners are available in over 140 countries round the clock. The resulting proximity to our customers enables rapid reaction times. Onside technicians are connected to the factory and service centers via a smart app for fast service and prompt part replacement.
